500mm Stroke 12000n Load High Force Linear Actuators 12 Volt Dc Motor For Rv
| Input Voltage | 12V, 24V DC |
|---|---|
| Duty Cycle | 25% |
| Force | 1200kg |
| IP Rating | 65 |
| Screw | T- Screw |
| Limit Switch | Built-in (factory Preset) |
| Option 1 | Ball Screw |
| Option 2 | Feedback (Pot Or Hall Sensor) |
Details About 500mm Stroke 12000n Load High Force Linear Actuators 12 Volt Dc Motor For Rv
Load & Speed of the linear actuator:
| High Force Linear Actuator | Load±10％(N) | Speed±2(mm/s) | |||
| Load | 16,000 | 12,000 | 5,500 | 2,000 | |
| Speed | 6.2 | 16 | 33 | 66 | |
High force linear actuator installation dimension:
| High Force Linear Actuator | Stroke ±3(mm) | Mounting dimensions±5(mm) | With/Without Feedback | ||||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 |
| Size | 300 | 300 | 350 | 400 | 450 | 550 | 600 | 650 | 700 | 750 | 800 |
Information of the linear actuator:
| Model | High force linear actuator |
| Input | 12v DC/24v DC |
| Dynamic Force | 16000N |
| Static Force | 20000N |
| Speed | 6.2mm/s |
| Stroke | 200mm |
| Retracted length | 400mm |
| Extended length | 600mm |
| Duty Cycle | 25% at 100% load |
| IP Rating | 66 |
| Screw | Ball screw |
| Clevis Ends | 13mm diameter |
| Operational Temperature | -40°C/65°C (-104°F/150°) |
| Limit Switch | Built-in (factory preset) |
| Safety Certifications | CE |

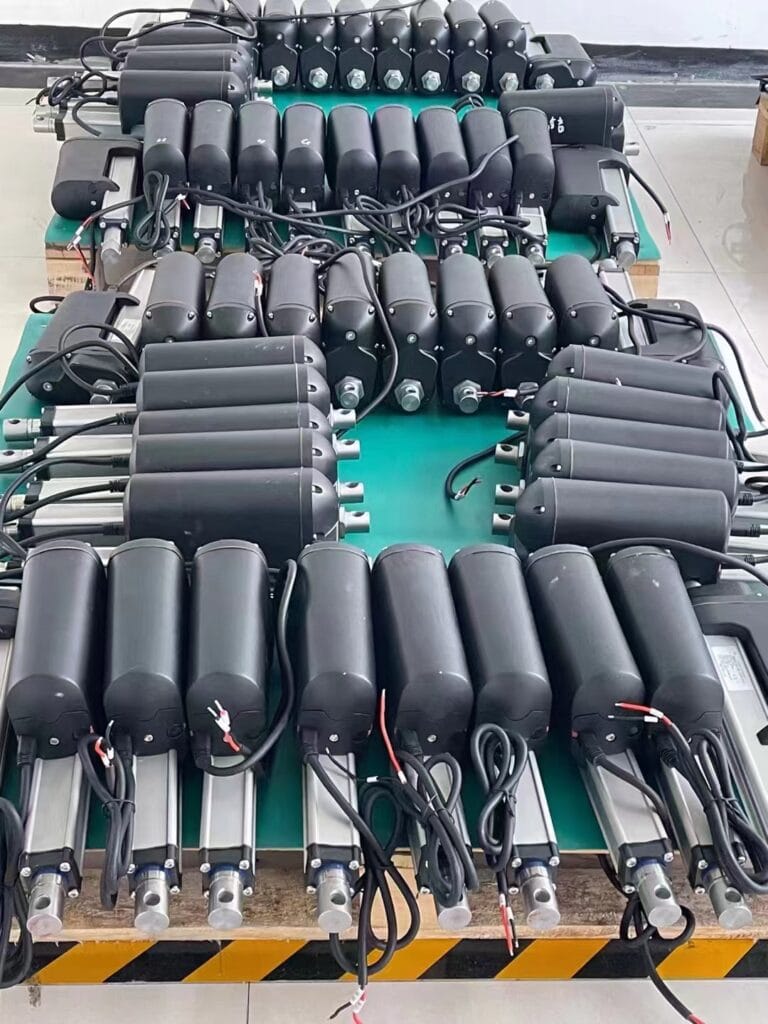

Linear Actuators Production lines
Our linear actuator is tested according to the following standards:
1) Static load- Static push and pull tests of basic actuators with different strokes
2) Dynamic load- Dynamic push and pull tests of the basic actuators with different strokes
3) Lifetime- Lifetime tests performed at combined loads in the push and pull situation
4) Climate test- Actuators are tested with max load at the temperatures of -40℃-65℃
5) Salt spray test- Actuators are tested for corrosion resistance at 400 hours salt spray test
6) IPXX- Actuators are tested for water ingress and dust sealing according to IPXX

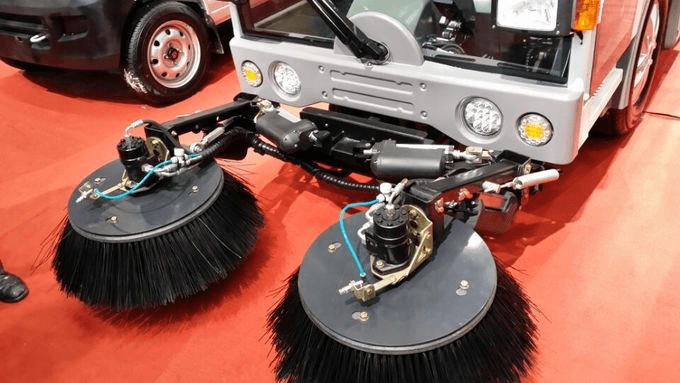

Linear Actuator works for Sweeper
